Working principle of vertical packaging machine

The working principle of the vertical packaging machine is that the film will be in the bearing device, through the tensioning device guide rod group, the photoelectric detection device controlled to test the position of the mark on the packaging material, and roll into the film-wrapped cylindrical surface filling tube through the forming machine. The longitudinal heat-sealing film rolled into a cylindrical interface with the longitudinal heat-sealing device, the tube-sealing tube, and the tubular film are then moved to the side heat-sealing machine to seal and pack the tube. The metering device measures the good items, fills into the bag through the upper filling tube, then the side heat sealing and the cutting of the center of the heat sealing device form the packaging unit, and at the same time form the next bottom barrel bag seal.

Vertical packaging machines are widely used in daily life. Suitable for packaging of various powders, granules, tablets and other products. Compared with other machines, the vertical packaging machine has a distinctive feature in that the conveying pipe of the packaging material is installed inside the bag making machine, the bag making, and the packaging material go from top to bottom along the vertical direction.

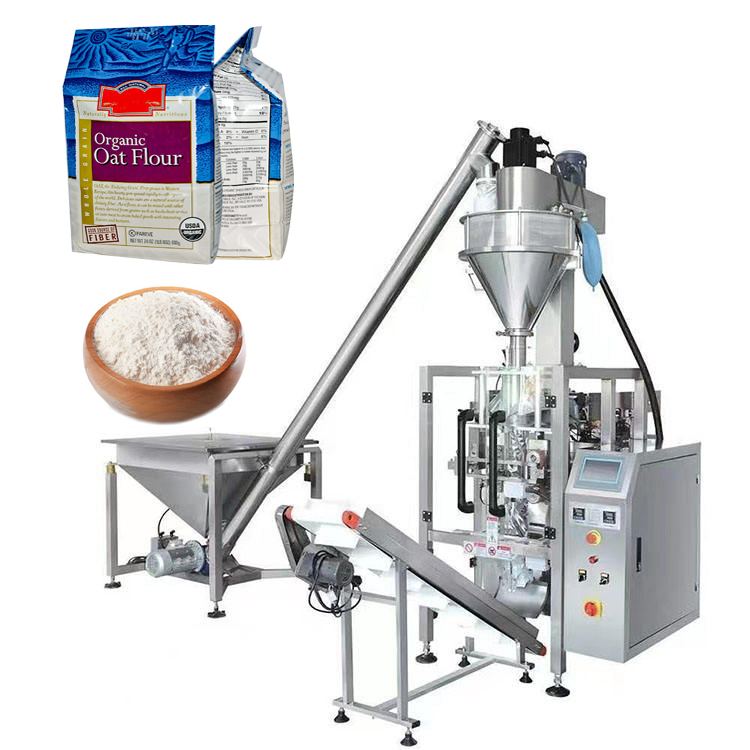

The vertical packaging machine is mainly composed of metering device, transmission system, horizontal and vertical sealing device, lapel former, filling tube and other components. The production process of the vertical packaging machine: the vertical packaging machine cooperates with the upper metering and filling machine, and the vertical packaging machine is often used for packaging block, sheet, granular, powder, and fluid and semi-fluid materials. Its characteristic is that the feeding cylinder of the packaged material is designed inside the bag maker, and the bag making and filling materials are carried out vertically from top to bottom.
